KIMURA BILLET LIGHTS AND REFLECTORS

Kimura smallest headlight/flashlight/standlight

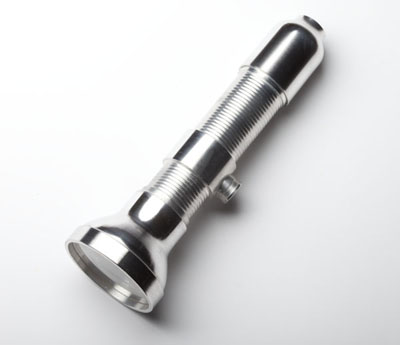

Kimura Flashlight/Stand Light

Traditionally, a flashlight provides lighting when stopped or moving very slowly, as a backup to a generator light. (Of course, many modern headlamps have a built-in stand light.) Old-style incandescent bulbs provide only an hour or so of light from a heavy load of C-cell batteries. This flashlight takes advantage of modern LED technology to provide many hours of illumination powered by a lightweight lithium battery.
Machined from billet, yet evoking tradition, it's a beautiful piece of equipment, as well.

This model has been revised making it smaller: The length is now 115 mm where the earlier version was 136 mm. The bracket is no longer included. Price is the same.

Model HL-05
5 LEDs
42mm Lens diameter
Over-all length: 115 mm
Uses one CR123A lithium battery
Run time of around 2-3 hours if on continuously (not flashing).

price: $125

Kimura Extra Small Flashlight/Stand Light

Model HL-15
42 mm lens diameter
Over-all length: 100 mm
Uses one CR123A battery
Battery will last about 4 hours of continuous use.

price: $95

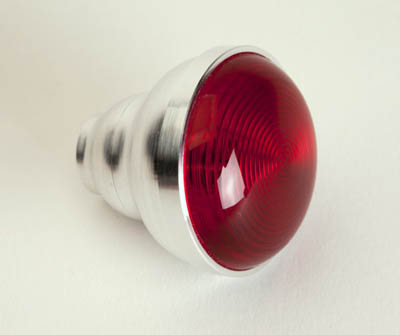

Kimura Billet Stay-mounted Tail Light

Same concept and quality as the head lights. Unlike the headlight, the bracket is not included but sold separately.

Model TL-07
36 mm lens diameter
Over-all length: 85 mm
uses one CR 2 battery

price: $90

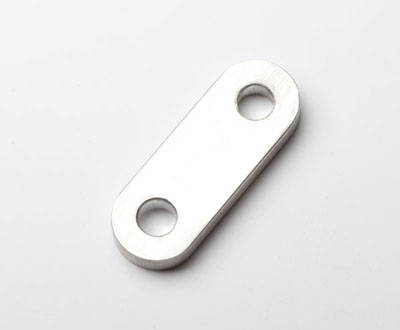

Bracket for Head or Tail Light
Where the light needs to be offset to fit as illustrated in the photo at the top of this page. Screws included.

price: $12

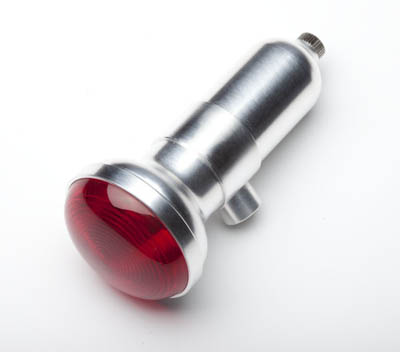

Kimura Frame-mounted Tail Light
Mounts to a special braze-on on the seat tube.

There are now two variations on this LED light.
TL06A has an internally threaded 6mm hole that mounts onto a 6 mm X 1.0 threaded frame braze-on. It also includes a threaded hollow stud that can be screwed into a hole of the appropriate thread if that's what the frame is fitted with.
TL06C is different in that the rear of the housing screws off and a small screw is fitted from the inside facing out the rear. This screws into an internally threaded fitting or braze-on. Once attached, the main part of the light body screws back onto the rear section.

price: $75

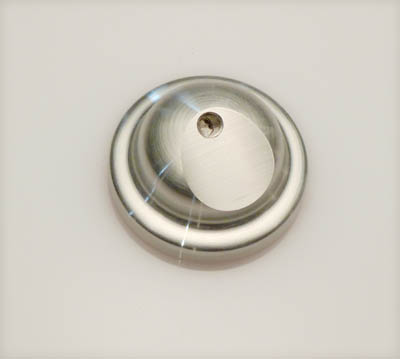

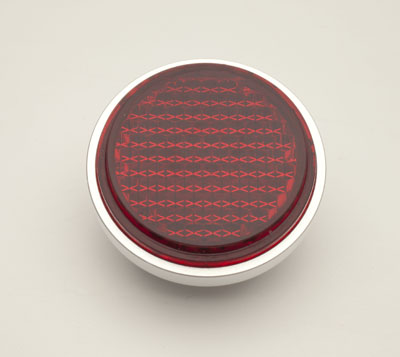

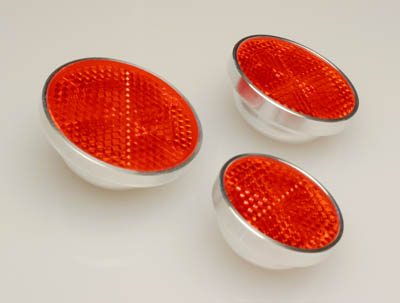

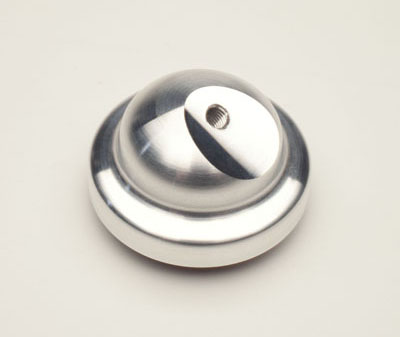

Kimura Billet Reflectors

prices:
35mm  diameter:  $35
38mm: $40
42mm: $45
